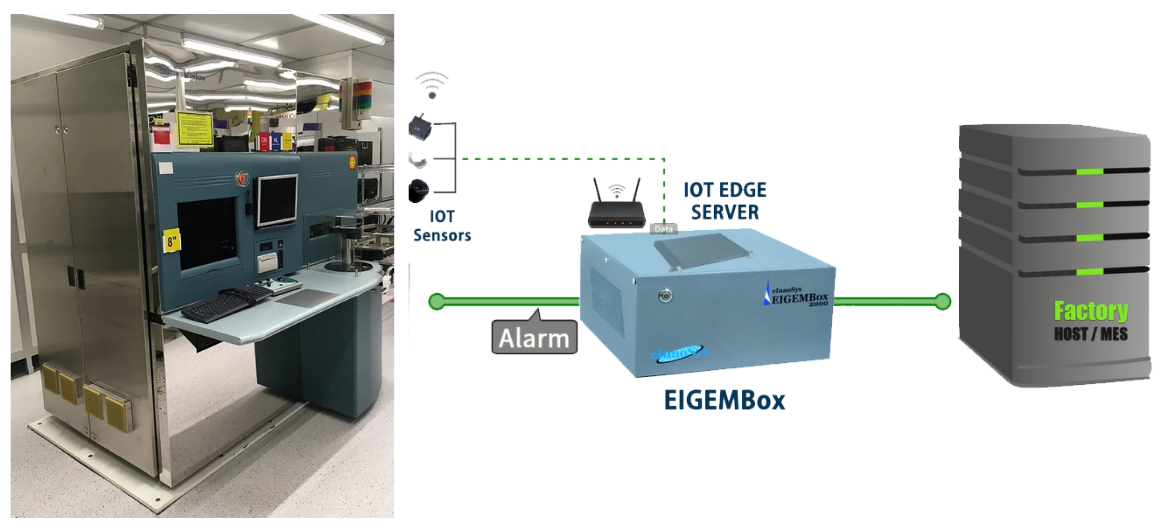

Success Story: SECS/GEM Integration on Applied Materials CX 200 SemVision DR SEM with EIGEMBox

The Challenge As the company scaled operations and adopted increasingly advanced semiconductor tools like the Applied Materials CX 200 SemVision DR SEM, they faced a critical barrier: ensuring seamless communication between host systems and equipment for real-time control, traceability, and performance optimization. Their biggest challenge was the lack of a reliable and standards-compliant way to validate SECS/GEM communication across varying machine states and recipe scenarios. This posed a bottleneck in their effort to digitally transform fab operations while ensuring compliance, quality, and traceability.

The Solution Enter EIGEMBox—an advanced SECS/GEM integration and simulation platform. Our team conducted a comprehensive deployment and validation strategy that included:

• Rapid SECS/GEM driver integration with the CX 200 SemVision DR SEM
• Real-time protocol emulation and handshake simulations for diverse GEM events
• Scenario-based testing modules for recipe download, remote commands, status variable reporting, and alarms
• A digital twin approach to validate equipment behavior even before production rollouts

The flexible configuration of EIGEMBox allowed the engineering team to simulate host scenarios without waiting for live production conditions, significantly speeding up the integration timeline.
