The Challenge: Bridging the Communication Gap
In the high-stakes world of semiconductor manufacturing, data is the lifeblood of efficiency. A leading semiconductor fabrication plant (fab) in the Philippines, renowned for its precision and quality, faced a significant hurdle. Their production floor relied on a state-of-the-art Trymax NEO200A plasma-enhanced chemical vapor deposition (PECVD) system, a critical tool for depositing thin films onto silicon wafers.
However, a crucial piece was missing: a seamless communication link. The NEO200A operated as a data island, unable to communicate with the fab’s overarching Manufacturing Execution System (MES). Without SECS/GEM protocol integration, the tool’s vast amounts of operational data—including wafer counts, process recipes, and equipment status—were trapped. This lack of connectivity led to manual data entry, potential for human error, inefficient production tracking, and an inability to implement real-time monitoring and predictive maintenance strategies. The fab needed a robust, reliable, and fast solution to integrate the Trymax tool into their Industry 4.0 framework.
The Solution: A Partnership in Precision

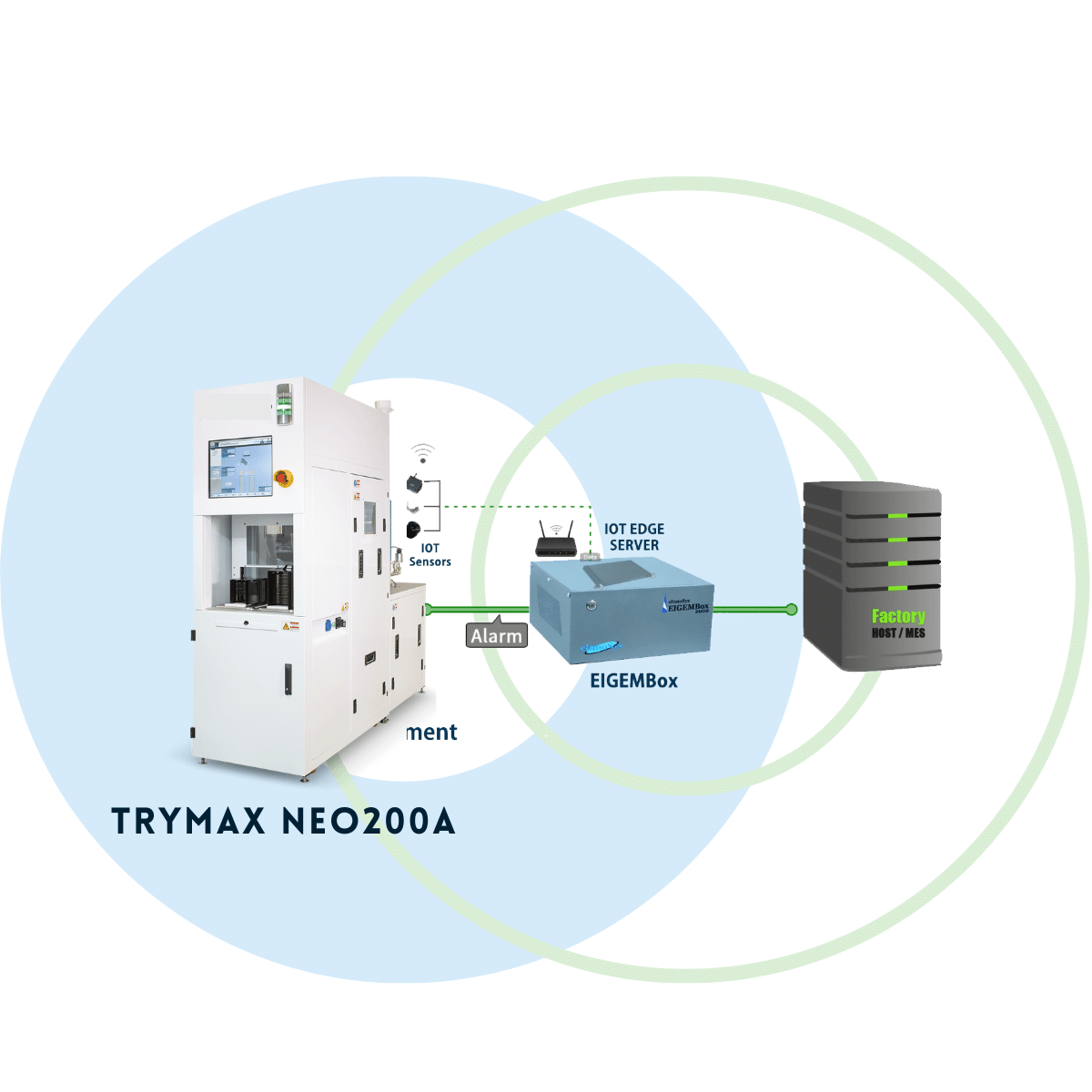

The fab turned to einnosys, a specialist in industrial automation and connectivity solutions with a proven track record in the semiconductor sector. Recognizing the critical need for a plug-and-play yet powerful interface, einnosys proposed their flagship connectivity solution: the EIGEMBox SECS/GEM Communication Gateway.
The EIGEMBox was the ideal fit for this challenge. Its key advantages included:
Rapid Deployment: As a hardware-based gateway, the EIGEMBox required no complex software installation on the sensitive Trymax NEO200A controller, minimizing downtime and risk.
Out-of-the-Box Functionality: Pre-loaded with device-specific drivers and a library of common GEM scenarios, it dramatically accelerated the configuration process.
Robust Protocol Support: It seamlessly translated the tool’s native communications into the standardized SECS-I and HSMS protocols, creating a perfect bridge to the host MES.
The einnosys engineering team executed a meticulous project plan. They first conducted a comprehensive analysis of the fab’s MES requirements and the communication capabilities of the Trymax NEO200A. The EIGEMBox was then strategically deployed on the fab’s network, establishing a secure and stable connection to the tool.
The Implementation: Flawless Execution, Minimal Disruption

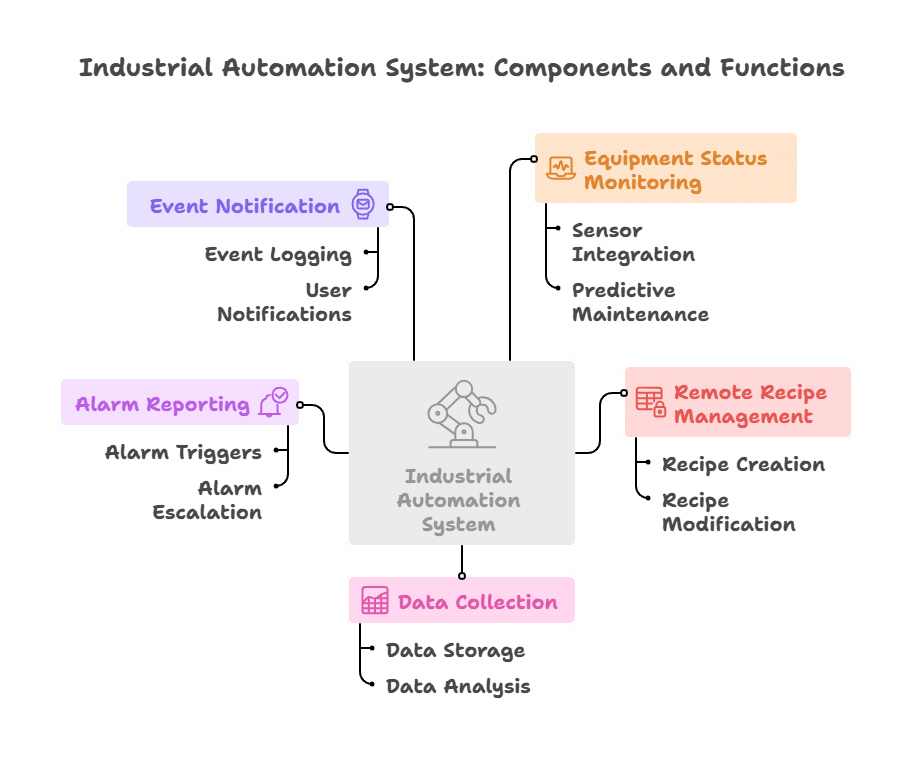

The implementation phase was characterized by precision and minimal disruption to the fab’s 24/7 production schedule. The einnosys team expertly configured the EIGEMBox to enable a comprehensive set of GEM functionalities, including:
Equipment Status Monitoring: Providing real-time visibility of the tool’s state (IDLE, RUNNING, DOWN, MAINTENANCE) to the MES.
Remote Recipe Management: Allowing engineers to send, select, and manage process recipes directly from the MES, eliminating manual handling.
Data Collection (DC): Automatically collecting and reporting critical process data (e.g., wafer counts, film thickness readings, process times) for each production run.
Alarm Reporting: Instantly notifying operators of any tool faults or exceptions, enabling faster response times and reducing potential wafer loss.
Event Notification: Ensuring the MES was immediately updated on key production milestones, such as lot start and completion.
“The partnership with einnosys was exceptional,” stated a spokesperson from the fab’s engineering department. “The EIGEMBox solution was implemented quickly and has performed flawlessly. We have successfully transformed our Trymax NEO200A from a standalone tool into a fully integrated, data-driven asset. This project is a cornerstone of our smart manufacturing journey.”
By leveraging einnosys’s expertise and the powerful EIGEMBox, this leading semiconductor manufacturer has not only solved an immediate connectivity challenge but has also positioned itself at the forefront of innovation, ready to capitalize on the full benefits of Industry 4.0.
