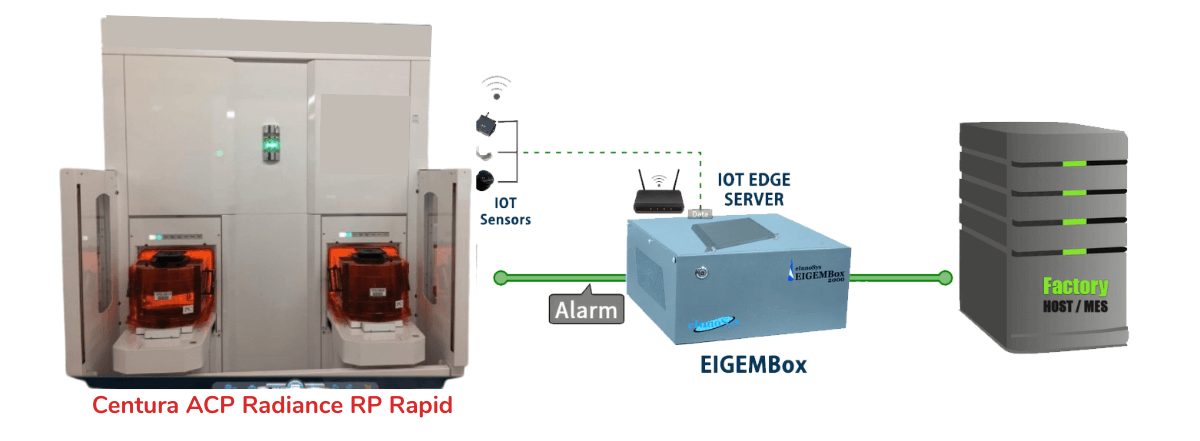

In the dynamic world of semiconductor manufacturing, efficiency and reliability are key drivers of success. A leading semiconductor manufacturer faced several challenges while integrating the SECS/GEM protocol with their Applied Materials Centura ACP Radiance RP Rapid Thermal Processor (300 mm). The deployment of the EIGEMBox solution marked a turning point, addressing these challenges and transforming their operations into a seamless, automated process.
The Challenges
Before implementing the EIGEMBox, the manufacturer encountered multiple hurdles that impacted productivity and efficiency. These included:
Inconsistent Communication Between Host and Equipment:
The communication between the host system and the equipment was plagued by frequent timeouts and incomplete SECS/GEM messages. This disrupted the flow of critical data, hampering decision-making and operational stability.
Data Collection Event (DCE) Misconfiguration:
Misconfigured data collection events resulted in incomplete or inaccurate data reports. The host system often failed to capture essential metrics for monitoring and analysis.
Equipment State Transitions Not Triggering Correctly:
The equipment failed to transition between states as expected, leading to delays and inconsistencies in production workflows. Host systems struggled to track real-time equipment statuses like IDLE, PROCESSING, or ALARM.
Alarms and Alerts Not Communicated Properly:
Critical alarms were either not transmitted to the host or contained incorrect information. This delayed fault detection and corrective actions, increasing downtime.
SECS/GEM Interface Compatibility Issues
Legacy equipment lacked compatibility with modern SECS/GEM software, resulting in difficulties establishing a reliable connection between the host and equipment.
Performance Degradation During High Data Volume
The equipment’s SECS/GEM interface struggled to handle large volumes of data, causing slower response times and missed event reports during peak production periods.
Security Vulnerabilities in SECS/GEM Communication
Without robust encryption and authentication mechanisms, the system was vulnerable to unauthorized access and potential tampering of SECS/GEM messages.
The Solution: EIGEMBox Integration
To overcome these challenges, the manufacturer deployed the EIGEMBox solution, a versatile and advanced tool designed for seamless SECS/GEM integration. This solution provided comprehensive features to resolve the identified issues and enhance overall system performance. Here’s how EIGEMBox addressed each problem:
Improved Communication Reliability
EIGEMBox optimized the communication settings between the host and equipment, reducing timeouts and ensuring complete data transmission. Advanced error-handling mechanisms ensured that data exchanges were reliable and efficient, even during high network loads.
Accurate Data Collection Event Configuration
With EIGEMBox, configuring and managing DCEs became straightforward. The system ensured proper mapping of equipment variables to SECS/GEM events, enabling accurate and timely data collection. This allowed the host to monitor production metrics effectively.
Seamless State Transition Tracking
EIGEMBox ensured compliance with the SEMI E30 GEM standard, enabling smooth and accurate state transitions. Real-time tracking of equipment statuses allowed the host to respond promptly to changes, improving workflow efficiency.
Reliable Alarm and Alert Management
By standardizing alarm configurations, EIGEMBox ensured that all critical alarms were accurately communicated to the host. Real-time alert notifications enabled proactive fault management, significantly reducing downtime.
Enhanced Interface Compatibility
EIGEMBox bridged the gap between legacy equipment and modern SECS/GEM software, ensuring seamless integration. It included tools to adapt proprietary extensions, making the system compatible with the host environment.
Optimized Performance Under High Data Volume
The solution incorporated data buffering and asynchronous message handling, allowing the equipment to handle large data volumes without performance degradation. This ensured consistent responsiveness during peak production.
Robust Security Features
EIGEMBox implemented advanced security measures, including TLS encryption and secure access controls. This protected sensitive manufacturing data from unauthorized access and tampering, ensuring compliance with industry standards.
The Results
The integration of EIGEMBox transformed the manufacturer’s operations, delivering significant improvements in efficiency, reliability, and scalability:
Enhanced Data Accuracy: The host system could now rely on precise and timely data for decision-making, enabling better process optimization and quality control.
Reduced Downtime: Proactive fault management and seamless communication minimized equipment downtime, improving overall production efficiency.
Increased Productivity: With reliable state tracking and optimized performance, the manufacturer achieved higher throughput without compromising quality.
Future-Ready Operations: The compatibility and scalability of EIGEMBox equipped the manufacturer to integrate additional equipment and adopt emerging technologies with ease.
The successful integration of the EIGEMBox with the Applied Materials Centura ACP Radiance RP Rapid Thermal Processor (300 mm) underscores the importance of advanced tools in modern manufacturing. By addressing critical challenges related to SECS/GEM communication, the EIGEMBox not only resolved existing issues but also laid the foundation for smarter, more efficient operations.
For manufacturers seeking to unlock the full potential of their equipment, solutions like EIGEMBox offer a proven path to success in the era of smart manufacturing.
