What is Computer-Integrated Manufacturing CIM? Benefits for Fabs

Summary

• Computer-Integrated Manufacturing CIM serves as the digital foundation for modern semiconductor fabrication, connecting business objectives with cleanroom execution.
• Key architectural components include Manufacturing Execution Systems (MES), Equipment Integration (EI), and Advanced Process Control (APC).
• Implementing CIM in semiconductor manufacturing delivers measurable gains in wafer yield, reduced cycle times, and fewer manual errors.
• Fab CIM systems utilize high-frequency data streaming to enable predictive maintenance and autonomous lot scheduling.
• Adopting manufacturing automation software is a prerequisite for competitiveness as node sizes shrink and process steps become increasingly complex.

Introduction

According to Statista (2024), the global smart manufacturing market is expected to surpass $650 billion by 2029, reflecting an urgent shift toward fully autonomous industrial ecosystems. For the semiconductor industry, this evolution is centered around Computer-Integrated Manufacturing CIM. This framework represents the holistic integration of computers, software, and communication networks to control every aspect of the production cycle. It is the bridge between a high-level corporate directive and the precise movement of a robotic arm in a cleanroom.

In a facility where a single speck of dust can ruin a batch of wafers worth millions, manual intervention is a liability. Modern fab CIM systems remove the guesswork from production by creating a seamless flow of information across the enterprise. By synchronizing design, manufacturing, and management, these systems ensure that every piece of equipment operates at peak efficiency.

The transition to a smart factory CIM environment is no longer a luxury for the top-tier players. As the industry moves toward 2nm processes and beyond, the complexity of managing thousands of process steps exceeds human capacity. This article explores how CIM architecture functions, its tangible benefits for chipmakers, and why it is the definitive foundation for the future of semiconductor production.

Defining the Architecture of Fab CIM Systems

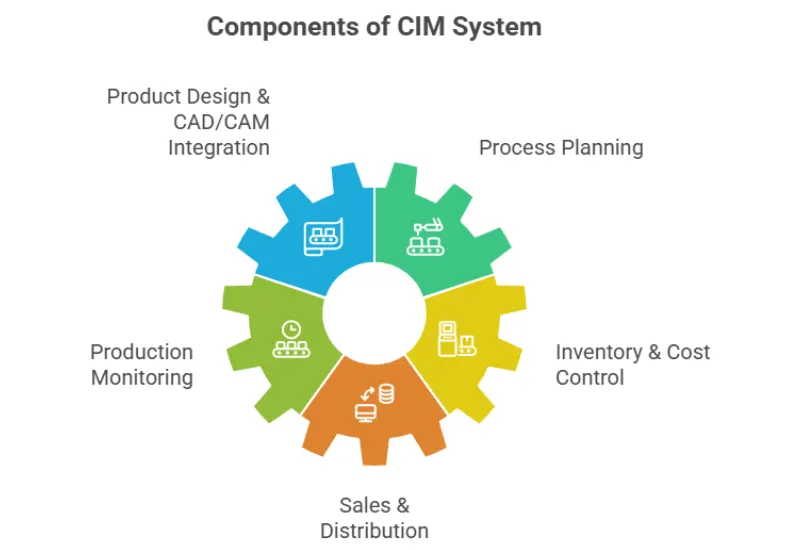

A robust CIM environment is far more than a collection of disconnected apps. It is a multi-layered architecture in which all manufacturing automation software communicates in a unified language. This structure typically follows a hierarchical model, often referred to as the CIM Pyramid, that organizes tasks from the physical sensor level through global logistics.

The Manufacturing Execution System (MES)

The MES serves as the primary engine of the CIM framework. It tracks and documents the transformation of raw silicon wafers into finished integrated circuits. By providing real-time visibility into work-in-progress (WIP), the MES allows managers to identify bottlenecks before production stalls. It manages recipes, tracks lot history, and ensures that every wafer follows its specific “route” through the fab. Without an MES, a fab is essentially flying blind, relying on outdated logs rather than live data.

Equipment Integration (EI) and Communication

Communication is the lifeblood of CIM in semiconductor manufacturing. To achieve total control, the CIM system must “talk” to the tools. This is achieved through standardized protocols like SECS/GEM (SEMI Equipment Communications Standard/Generic Equipment Model). These protocols allow the central system to start or stop jobs, collect metrology data, and monitor tool health without a technician needing to touch a screen.

Advanced Process Control (APC)

APC is where the system’s logic shines. It uses sophisticated algorithms to adjust process parameters in real-time. If a lithography tool shows slight alignment drift, the APC system detects the deviation through metrology feedback and automatically compensates for it on the next wafer. This “run-to-run” control is vital for maintaining tight tolerances at advanced nodes. Where exactly does the data go? It flows into the APC engine, which makes micro-adjustments that human operators could never calculate fast enough.

Why CIM in Semiconductor Manufacturing is Essential

The semiconductor landscape is notoriously volatile, characterized by massive capital expenditures and razor-thin margins for error. According to a McKinsey & Company (2022) report, semiconductor companies that successfully implement Industry 4.0 technologies with CIM at the core see a 15% to 30% improvement in labor productivity.

Semiconductor manufacturing involves hundreds, sometimes thousands, of individual steps. Managing this without a smart factory CIM setup would be like trying to conduct a massive orchestra where every musician is in a different room and cannot hear the music. The CIM system acts as the conductor, ensuring every “instrument” stays in sync.

Furthermore, the volume of data generated in a modern fab is staggering. A single tool can produce gigabytes of telemetry data every day. CIM systems ingest this data, clean it, and turn it into actionable insights. Without this integration, that data remains a dark, unusable resource. With it, the data becomes a roadmap for improving yield and profitability.

Tangible Benefits of Manufacturing Automation Software

The decision to invest in Computer-Integrated Manufacturing CIM usually comes down to the bottom line. While the initial setup cost is significant, the long-term ROI is found in several critical operational areas.

• Yield Enhancement: By monitoring environmental variables and tool performance in real time, CIM systems prevent “lot excursions” and mass defects.
• Reduced Cycle Time: Automated scheduling ensures that wafers move to the next available tool without waiting for human confirmation.
• Inventory Optimization: CIM tracks the consumption of gases, chemicals, and photoresists, triggering automated reorders to prevent stockouts.
• Enhanced Traceability: In the event of a field failure, a manufacturer can trace a specific chip back to the exact time, tool, and chemical batch used during its creation.

Moving Toward a Smart Factory CIM Strategy

The phrase “smart factory” describes an environment that is not merely automated, but also autonomous. A smart factory CIM setup uses machine learning to optimize the entire facility. For instance, rather than following a fixed maintenance schedule, the system analyzes vibration and temperature data to predict when a vacuum pump might fail.

This shift changes the role of the manufacturing engineer. Instead of spending hours gathering data to determine why a yield hit occurred, they spend their time fine-tuning the AI models that prevent such hits from happening. This transition from “firefighting” to “fireproofing” is the hallmark of a mature CIM implementation.

Is it possible for a fab to thrive without these systems? One might as well ask if a pilot can fly a jumbo jet across the ocean using only their eyes and a paper map. Technically, it could happen, but the risks are astronomical, and the efficiency is pathetic. In the semiconductor world, efficiency is the difference between being a market leader and being obsolete.

Overcoming Implementation Hurdles

Despite the clear advantages, deploying manufacturing automation software across a global footprint is challenging. Legacy equipment often poses the biggest hurdle. Some older tools lack the necessary communication interfaces to talk to a modern CIM.

Bridging the Legacy Gap

Engineering teams often utilize “black boxes” or protocol converters to bring older equipment online. These intermediaries translate proprietary tool signals into the SECS/GEM language that the CIM understands. This allows fabs to extend the life of expensive assets while still benefiting from modern data analytics.

Data Silos and Security

Integration requires breaking down the walls between the IT and OT (Operational Technology) departments. As fabs become more connected, they become targets for cyberattacks. A modern CIM strategy must include robust encryption and segmented networks to protect intellectual property and production uptime.

The Future of Computer-Integrated Manufacturing CIM

As we look toward the 2030s, CIM will likely evolve to include “Digital Twin” technology. A Digital Twin is a virtual replica of the entire fab. Engineers can run “what-if” scenarios in the virtual CIM, such as changing the floor layout or introducing a new tool, to see the impact on throughput before making a physical change.

According to Gartner (2023), organizations using digital twins in their manufacturing operations can see an 11% average increase in efficiency. When combined with CIM in semiconductor manufacturing, these simulations allow for “zero-downtime” upgrades.

There is also a growing focus on sustainability. Future CIM systems will monitor energy and water consumption as a primary KPI, helping fabs meet ESG targets by optimizing power-hungry cooling and filtration systems.

Conclusion

The evolution of the semiconductor industry is inextricably linked to the sophistication of its software. Computer-Integrated Manufacturing CIM has transformed from a support function into a strategic imperative. By centralizing data, automating complex workflows, and enabling real-time process adjustments, fab CIM systems provide the stability needed to manufacture the world’s most complex technology. As fabs continue to push the boundaries of physics, their reliance on integrated, intelligent systems will only grow. Investing in the right CIM infrastructure today is the only way to ensure a seat at the table in the silicon-driven economy of tomorrow.
