EIGEMHost

EIGEMHost is SEMI standards compliant, plug-n-play SECS/GEM software that can be integrated into any host application at the FAB or ATM (Assembly, Test, or Packaging manufacturing factory) to enable  automation features at the host, such as –

  • Downloading recipes from the Recipe Server or host to the equipment
  • Host application selecting required recipe on the equipment
  • Collecting Alarms and events data from the equipment for analysis
  • Collecting process data such as temperature, pressure, etc. in real time from the equipment
  • Receive and set equipment configuration parameters

EIGEMHost is a library software (SDK) that provides various APIs that can be called from the host application or any other software application, that requires features mentioned above.


FEATURES OF EIGEMHost

  • Multi-technology support – APIs in C#, Java and .Net languages
  • Multi-platform support – Windows, Linux/Unix and Android
  • Ultra light-weight & best optimized – Consumes very little CPU & memory, so that you have more of those available for your controller/GUI software

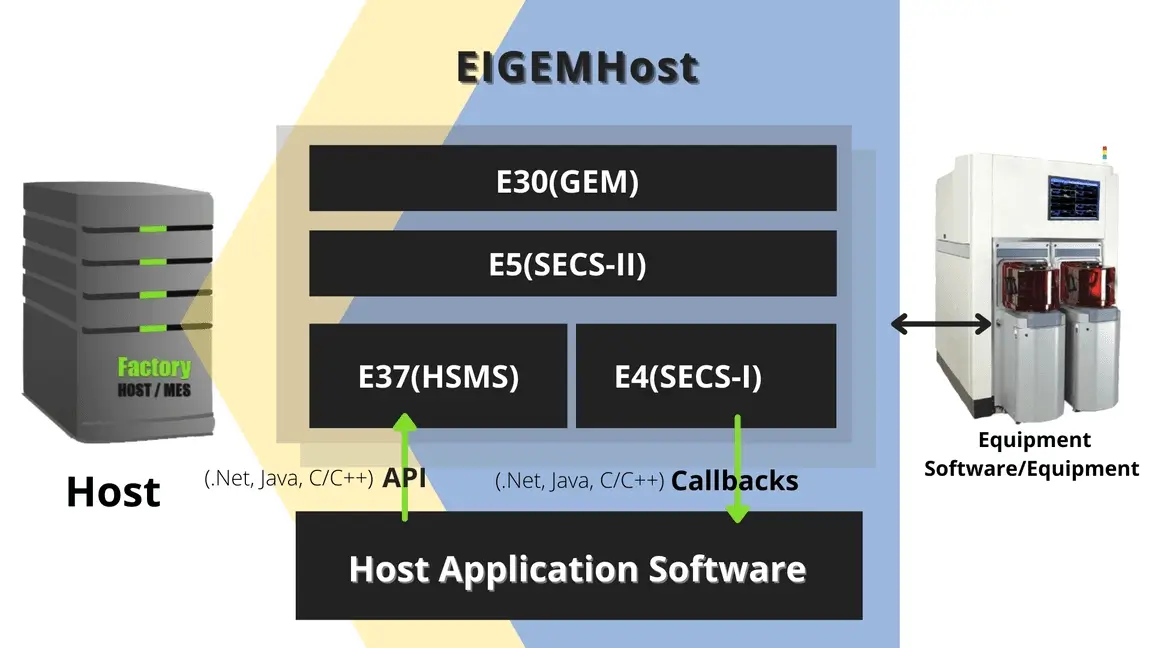

EIGEMHost IS COMPLIANT OF THE FOLLOWING SEMI STANDARDS:

  • E30 – GEM (Generic Equipment Model)
  • E5 – SECS-II message format
  • E37 – HSMS (Ethernet) connectivity
  • E4 – SECS-I serial (RS232) connectivity

For more information and pricing
