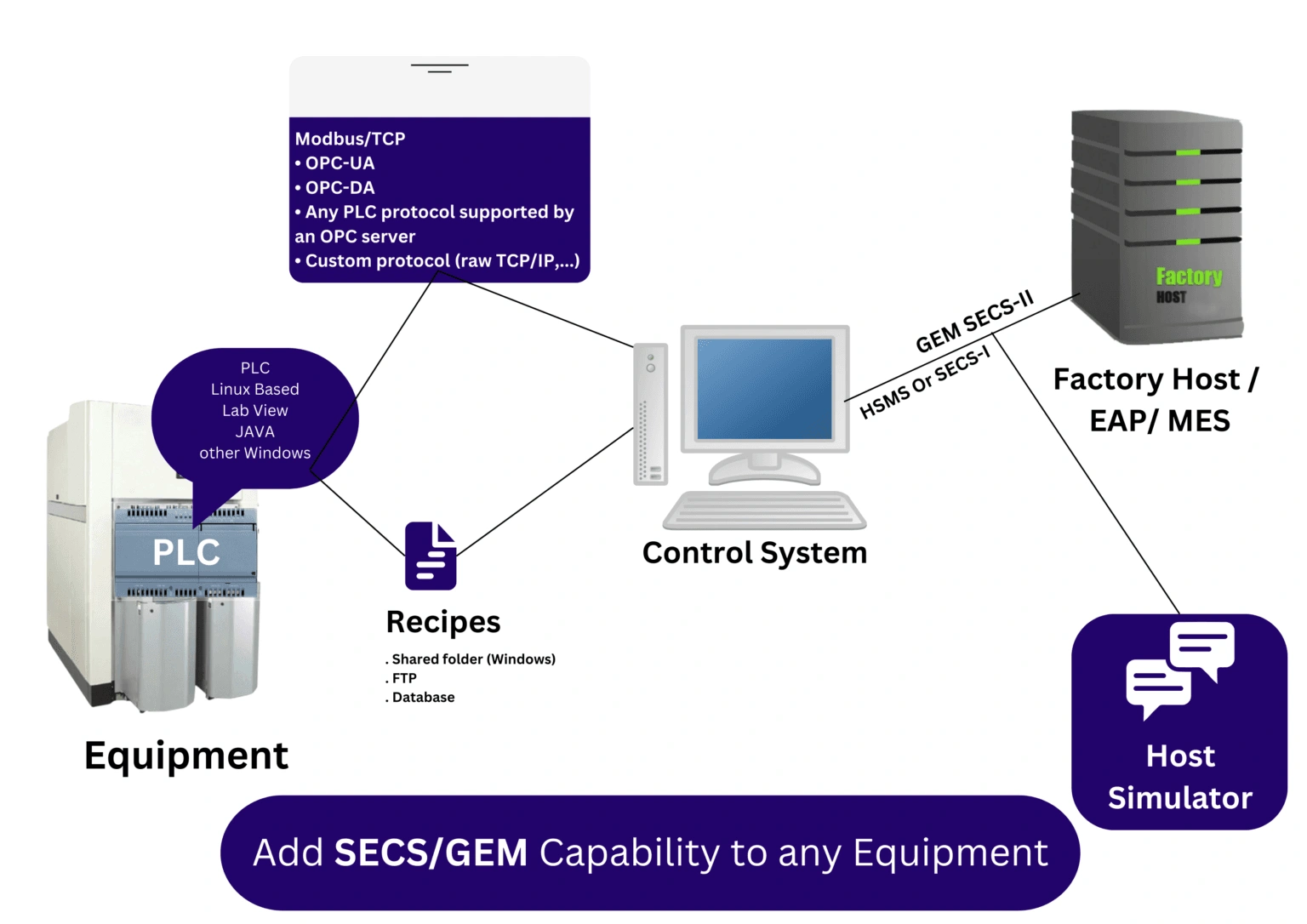

Achieve full Equipment Integration with SECS/GEM & PV2 SDKs
EIGEMEquipment is a SEMI standards compliant SECS/GEM SDK which is required for communication between a Semiconductor Equipment and a Factory Host/MES/EAP system.
The SDK supports SECS-I (SEMI E4 & SEMI E37), SECS-II (SEMI E5), GEM & PV2 communication protocols with APIs available in C#, Java and .NET technologies for quick & easy object-oriented implementation.
The SDK can be used for Equipment Integration in Semiconductor, PV, LED, FPD, Electronics and related industries.
Services & Advantages of SECS/GEM & PV2 SDKs
GEM Services:
- Equipment communication state and control state
- Process program
- Collection event sending (S6F11)
- Variable data collection
- Status data collection
- Remote control (S2F41/S2F49)
- Alarm management
- Equipment constants
- Clock
- Trace data collection
- Limits monitoring
- Customization availability for any SECS‑II compliant message format
Advantages:
- Built-in support for SEMI Standards
- Support for TCP/IP and RS-232 connections
- Lightweight and easy on CPU
- Fast & Reliable
- C#, Java & .NET APIs for Integration
- Onsite & Online support available for Integration
- Available on Microsoft Windows® & Linux

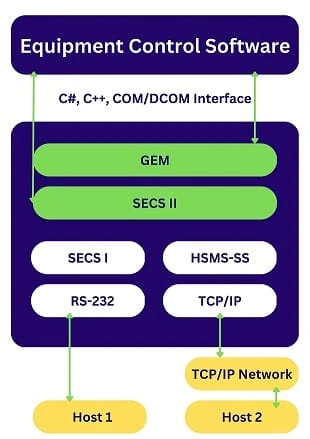

SEMI standards:
- E4 SECS-I (serial protocol)
- E37 HSMS-SS (ethernet protocol)
- E5 SECS-II
- E30 GEM
